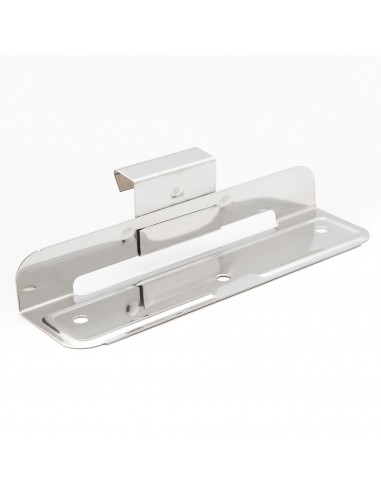

Sliding clips 32 mm

Description

Sliding clips Design with rounded corners and corrugations to prevent damage to the roof covering by means of high corners, but also to stiffen the lower part or to compensate for the used nail heads. Due to the special shape of the upper part, a slight clamping effect is achieved in the pre-profiled fold, so that the attachments suspended for assembly cannot slide downwards. Sliding clip with a 55mm sliding area available for seam heights from 25 to 38mm. Thus, the following coulter lengths are possible with a standing seam cover: - Titanium zinc up to 12 meters - Stainless steel up to 16 meters - Aluminium up to 11 meters - Copper up to 14 meters - Galvanised steel up to 16 meters When using longer shares, we recommend the use of our long sliding clips.

Schema

Schéma použitia pohyblivých príponiek vo vzťahu ku sklonu strechy.
