Coil unwinder 1 000 mm |
Coil unwinder 1 000 mm |
Coil unwinder 1 000 mm |
Coil unwinder 1 000 mm |

Coil unwinder 1 000 mm

Information

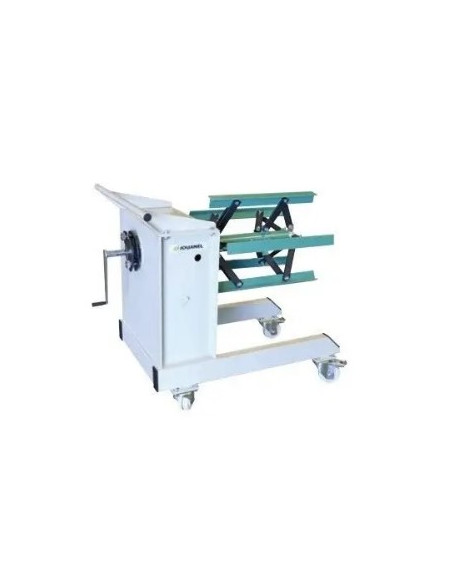

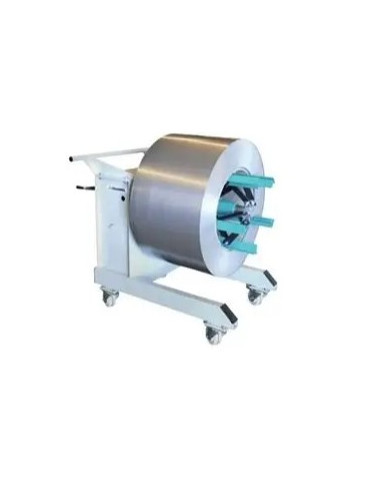

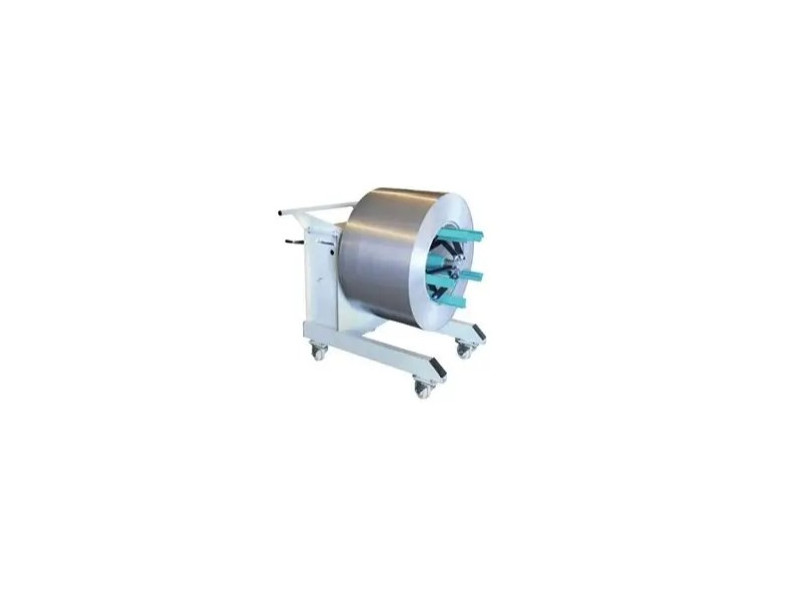

Cantilever coil unwinder, coil width 1,000 mm. Easy to handle, space-saving. Manual coil brake and winder on the same side.

To order
€3,870.00
i
Výše uplatněné DPH je 0% pro zemi United States.
3870.00 tax excl.



Description

Cantilever coil unwinder, coil width 1,000 mm. Easy to handle, space-saving. Manual coil brake and winder on the same side.

Product Technical Parameters

Parameter Value
Maximum coil width (mm) 1,000
Maximum coil weight (kg) 1,000
Maximum outer diameter (mm) 1,100
Inner diameter of coils (mm) from 310 to 540
Passage width between beams (mm) 270
Beam height (mm) 95
Floor height – mandrel axis (mm) from 400 to 700
Overall dimensions (L x W x H) (mm) 1,400 × 730 × 970
Net weight (kg) 259
