Decoilers on wheels DVS
Information

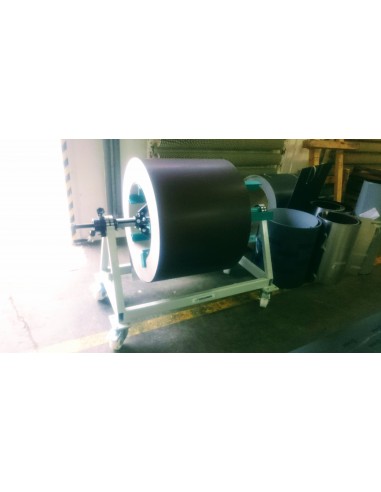

A wheeled coil reel from French manufacturer Jouanel Industrie is a robust and reliable piece of equipment designed for unwinding sheet metal coils and strip materials in construction and industry. Thanks to its heavy-duty construction and practical design, it ensures safe and comfortable handling of heavy coils.
Description:

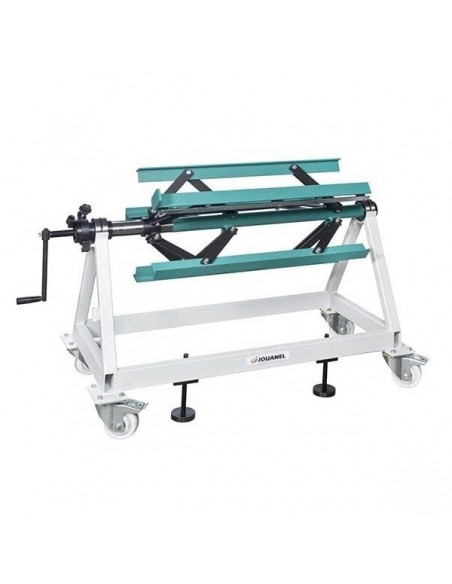

Decoiler on Wheels DVS – Width 1,250 mm, Capacity 1,000 kg with Brake
A wheeled coil reel from French manufacturer Jouanel Industrie is a robust and reliable piece of equipment designed for unwinding sheet metal coils and strip materials in construction and industry. Thanks to its heavy-duty construction and practical design, it ensures safe and comfortable handling of heavy coils.
✅ Key Features
- Manual brake and crank handle on the same side – comfortable and intuitive operation
- Side loading possible – facilitates coil handling
- Top or bottom unwinding – flexible use according to your needs
🔧 Standard Equipment
- 4 swivel wheels with brake
- Wheel axles mounted on ball bearings
- Manually expandable mandrel (diameter Ø 285 – 540 mm)
- Maximum outer coil diameter: 1,000 mm
📐 Technical Specifications
| Parameter | Value |
|---|---|
| Maximum coil width | 1,250 mm |
| Maximum load capacity | 1,000 kg |
| Maximum outer coil diameter | 1,000 mm |
| Inner coil diameter | 285 – 540 mm |
| Overall dimensions (L x W x H) | 1,850 × 800 × 770 mm |
| Net weight of unit | 130 kg |
| Mandrel weight | 86 kg |
🔩 Optional Accessories
Spare mandrel with brake for coil reel DVS1250 / DVS1250E – additional mandrel (ref. MOY-DVS1250) allowing quick coil change without stopping the equipment.
🇫🇷 Equipment certified with the Origine France Garantie label – manufactured in France.
