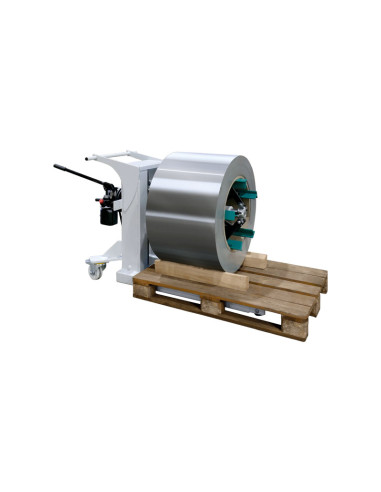

Cantilever coil unwinder, coil width 1,000 mm

Description

This cantilever uncoiler ensures easy and fast loading of a coil from a pallet and its positioning in front of the production machine. It is mobile and compact, equipped with a hydraulic lever system that allows the mandrel to be adjusted to the required height effortlessly, before expanding the hub. It can be easily operated by a single operator – eliminating the need for a forklift when positioning coils.

➤ Key Features:

• Cantilever mandrel for easy coil loading
• Coil loading and movement manageable by a single operator
• Hydraulic mandrel raising and lowering system for autonomous loading
• Brake for adjusting coil unwinding speed
• Rewinding function without acting on the hub expander
• Unwinding from the top or from the bottom
• Offset wheels for greater pushing comfort

➤ Standard Equipment:

• Hydraulic system for vertical mandrel movement
• Mandrel for coils with max. width of 1,000 mm
• Crank handle with foldable grip for mandrel expansion (Ø from 310 to 540 mm)
• Brake for adjusting unwinding speed via rotary knobs
• Handling bar
• 2 large swivel offset wheels with brake (Ø 125 mm)
• 2 fixed wheels on longitudinal beams

Product Specifications

🔧 Terminology note: A "cantilever uncoiler" is a coil/sheet metal uncoiler widely used in metalworking and the construction industry for processing steel coils. The cantilever design allows the coil to be loaded from the side without the need for a forklift.
