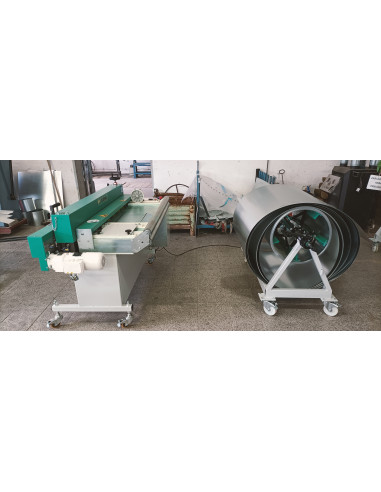

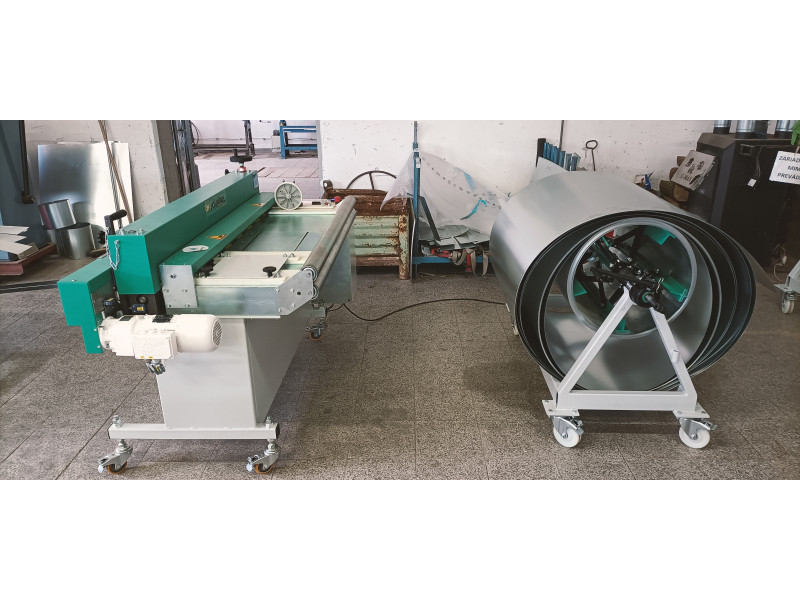

CLD-AE-REF JOUANEL light electric cutting lines cld

Main informations

Product plus:

•     Automatic cutting cycles for unattended work
•     Unwinding speed 12 m / mn
•     Speed ​​variator for smooth work
•     Unwinding and electric cutting
•     Easy to move in the workshop
•     It does not leave marks on the sheet metal
•     With or without cutting, manual lifting of the upper knives


Numerical control:

•     7 '' color touch screen
•     Programming of different quantities and several lengths
•     Automatic cutting cycle
•     In automatic mode, select cutting or non-cutting per program line
•     Manual cycle for ad hoc work
•     Manual or automatic speed setting
•     Cutting accuracy +/- 2 mm per 2 m


Standard equipment:

•     3 sets of adjustable cutting knives
•     Drive by rubber rollers
•     Adjustable guide rails from 500 to 1250 mm, on sliders and locking handles
•     The holder adapts to spools with a minimum width of 250 mm
•     Sheet metal guide on ball bearings
•     The free roller at the entrance guides the metal sheet in height
•     Base table with nylon protection to prevent marking under the metal sheet
•     Sheet metal clamping device for cutting with a rubber cylinder with a device for securing the spool
•     Electric cutting by roller cutting
•     4 wheels with brake
