Description

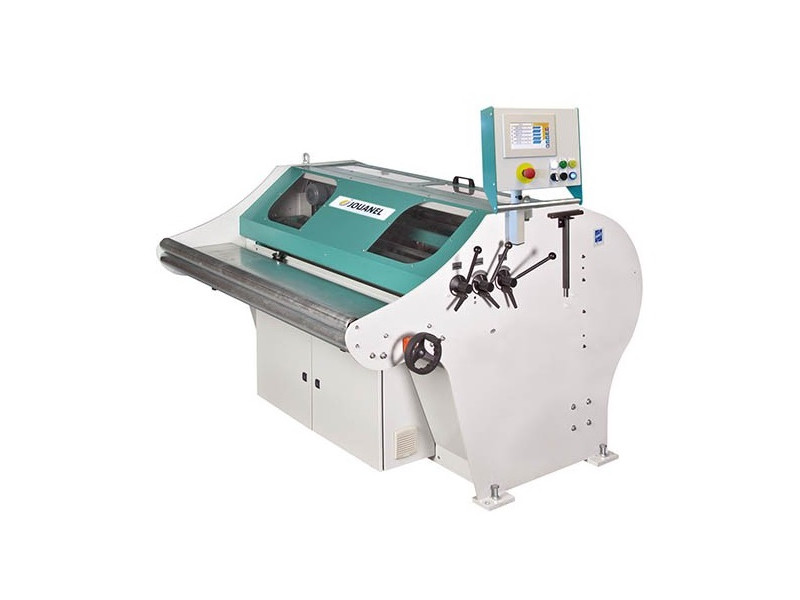

Compact cutting line, reference MLC1250, 1,25m useful working width, 1.2mm steel shearing capacity, 1,0mm steel slitting capacity, equipped with a numerical control, for feeding, slitting and length cut

Product plus:

Numerical control as standard for complete management of uncoiling and slitting Length cut by guillotine shears providing power and rapidity Manual blades adjustment with wheel and counter allowing precision and quality of cut according to the thickness of the material Excellent accuracy of length cut +/-1mm

Standard equipment:

Entry table with rollers including adjustable guides by lever with counter, 1,25m maximum width Motorized feeding station (1 steel roller + 1 rubber-coated roller Ø 80mm) Slitting station with ground shafts Ø 100mm, equipped with 3 sets of adjustable cutter blades Ø 154mm with reading on tool - Manual shaft adjustment by wheel and counter Minimum cutting width: 80mm between cutter blades, 10mm at edge Set of reversing cutter blades mounted on one-piece blade-carrying blocks Maximum uncoiling speed: 20 m/mn

Control console with:

Color touch screen 7’’ Lengths and quantities programs Naming and saving of programs Indication of raising or lowering of the upper shaft automatically given to the operator by the CNC Possible use in manual mode Daily counter and cutting accumulator Preventive maintenance menu Remote maintenance and updates via Ethernet connection (RJ45)
